Forest Fire Simulation

---

Copyright

---

Image(s): 640*480

Jpeg Image (28 Ko)

Author(s)

• Geoffrey Y.Gardner
  • Email : gyg@tech.grumman.com
  • Biography : Dr Geoffrey Y. Gardner has been a Senoir Staff Scientist at Northrop Grumman Data Systems Division since 1986. He has been working in the field of Computer Graphics since 1976.

Institute(s)

• Northrop Grumman Data
  • Country : USA

Project : Data Systems Division Technology Department

---

Video(s) and extracted images: 320*240

Film 1	Video QuickTime ->	(4.0 Mo)
	Jpeg Images ->	(9 Ko)

Film 2	Video QuickTime ->	(4.8 Mo)
	Jpeg Images ->	(11 Ko)

---

Description

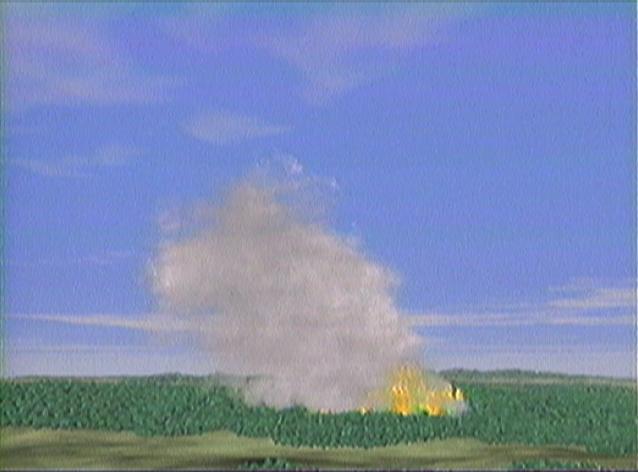

Forest Fire propagation is simulated using fractal ellipsoids driven by a heurisyic dynamic model. An elliptical region of fire is defined oriented in a specified wind direction of the wind and is proportional to its speed. Fire, smoke and trees are modeled with ellipsoids whose shading and translucence are modulated by a 3-D fractal texture function, which simulates a naturally- random Gaussian mass distribution in each ellipsoid. All smoke ellipsoids are textured with the same pattern which moves downwind with the ellipsoids. Fire flicker is simulated by moving a second fractal pattern rapidly over stationary fire ellipsoids.

• Date : 92

• Category : Simulation

• Keys Words :

  • Computer Graphics
  • Fractal Ellipsoids
  • Dynamic simulation

• Theme(s) :

  • Fractals (ellipsoids)
  • Fire

Technical Information

This simulation was performed using proprietary software written in Fortran running on a Silicon Graphics Personal IRIS 4D/25G workstation.

---

More Information...

---





• Some internal links :

  Same Author

  Send in the Clouds

  Same Institute

  Send in the Clouds

• Some more Comments :

  Information from an email message sent by G.Y.Gardner.

---
